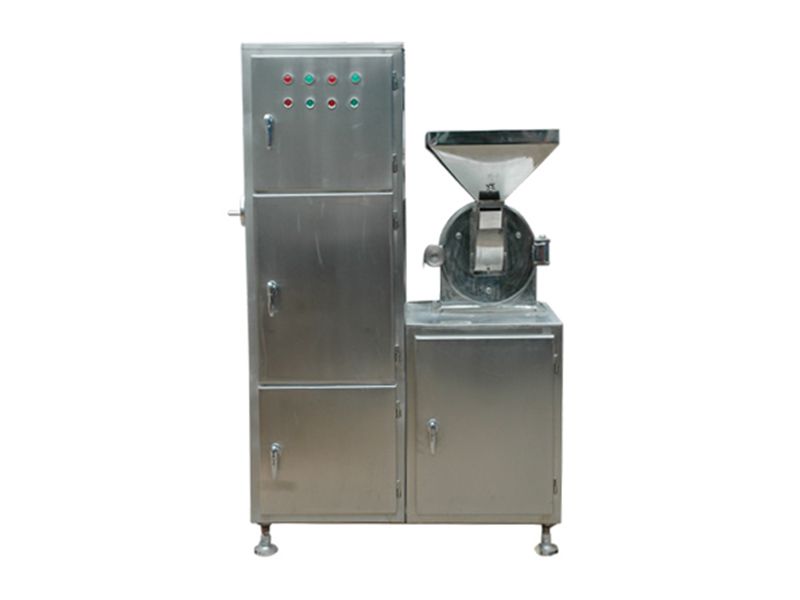

Stainless Steel Grinder with Dust Collector
Stainless Steel Grinder with Dust Collector
Stainless steel grinder with dust collector has a wide application in various industries, including feed, medical, chemical, food and non-metallic mineral. This machine is especially suitable for crushing dry brittle materials. With a simple but strong structure, it runs smoothly and produces uniform crushed materials efficiently. The machine is made of high-quality stainless steel material, and the inside of the chassis is precisely machined to get a smooth surface, which is easy to clean and hygienic.
Main Features
- Easy to dissemble and clean.
- Two structural forms are optional, one with a bracket and another bottom box, made of wire drawing and mirror-finish stainless steel.
- Forced air-cooled and water-cooled models are optional to meet the crushing requirements of thermosensitive materials
- Safe feeding device to ensure the safety of the material crushing process
- Stable operation, low vibration and noise.
- Easy to operate. The size of particles can be controlled by changing the mesh.
- The dust removal system effectively collects dust produced during the crushing process, protects workers and improves material utilization.
- Designed according to CE standards, safe and reliable.
Specifications
| Model |
ZNGD320
|
ZNGD450
|
| Host speed r/min | 4500 | 3200 |
| Rotor Working Diameter mm | 320 | 450 |
| Motor Power (kW) | 7.5 | 11 |
| Dust Collector Power (kW) | 1.1 | 1.1 |
| Output kg/h | 50-300 | 200-500 |
| Feed size mm | ≤12 | ≤12 |
| Grind size mm | 10-120 | 10-120 |
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
