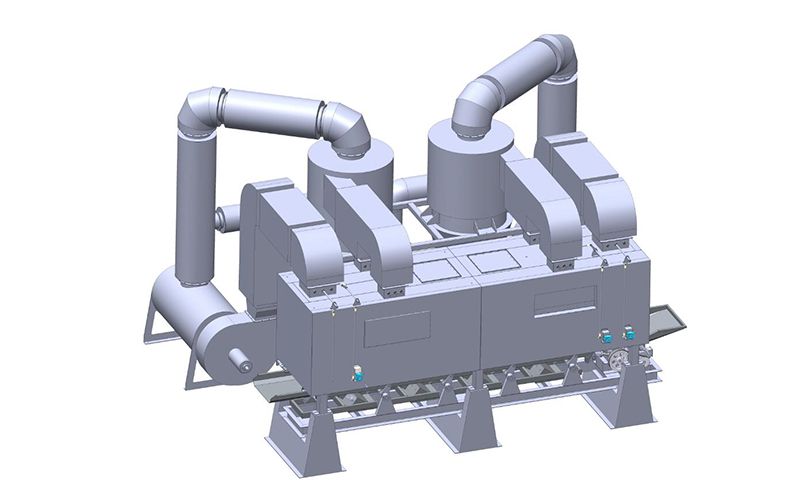

High Temperature Tunnel Oven
High Temperature Tunnel Oven
This high temperature baking machine/popper/roaster is developed and improved based on international advanced technology. It is mainly for pellets and corn flakes, cereals, etc, which need to be processed under high temperatures and short time.
We are able to supply customized baking machines according to your needs.
Main Features
- Convey materials with a vibratory feeder. The materials stay in the flip state during conveying process, so as to ensure that the materials are baked with uniform heat and maintain a good baking flavor.
- Double-stage fire, powerful temperature control.
- The insulation door is easy to open and clean, showing good sealing performance.
- Air circulation is efficient and energy-saving.
Specifications
| Model |
200 convection oven
|
600 convection oven
|
600 convection oven
|
800 convection oven
|
| Total power | 30(heater)+1.5(drive motor)+3kW(fan)+2.2kW(exhaust fan)=35.5kW | 30(total fan power)+5.5(drive motor)=35.5kW | 13.2(total fan power)+5.5(drive motor)=18.7kW | 30(total fan power)+5.5(drive motor)=35.5kW |
| Dimension | 7000×5000×4100mm | 7000×5000×4100mm |
7000×1600×5100mm | 7000×5000×4100mm |
| Baking time | 50s | 50s | 50s | 50s |
| Vibration width | 600mm | 600mm | 600mm | 800mm |
| Material thickness | Single layer | Single layer | Single layer | Single layer |
| Heating temperature | Around 240℃ | Around 200℃ | Around 220℃ | Around 200℃ |
| Capacity | 200kg | 300-400kg | 200-300kg | 500kg |
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
